Database Gateway

(DBGW)

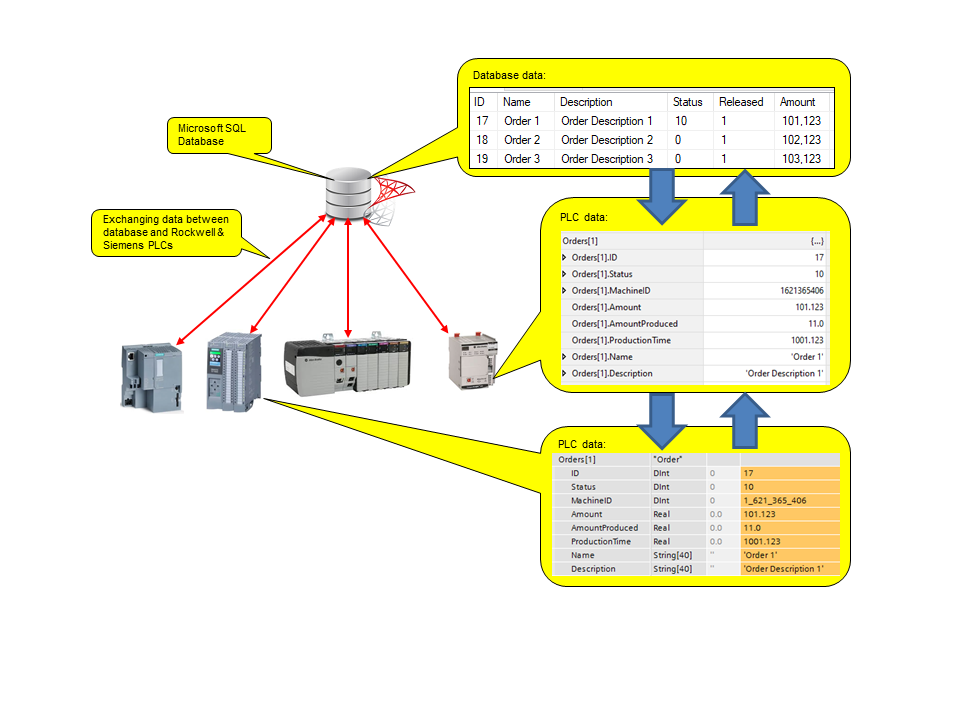

Software for data exchange between SQL-Databases and PLCs

Supported on Rockwell Automation (RA) & Siemens PLCs

Use it for:

Order handling

– Recipe handling

Alarm & Event handling

Traceability

– Inventory tracking

– Machine learning

– Machine data

Configuration data

OEE

– Datalogging in general

Advantages:

– Easy to implement

– No tag limits and no SQL query limits

– All SQL queries are supported (Select, Update, Delete, Insert, execute Stored Procedures with input- & output-parameters, Create tables, Drop tables, Backup DB and many more)

– SQL users, Windows workgroup and Domain users are supported

– Microsoft Azure Cloud, Amazon Web Services (AWS) and Google Cloud Platform are supported

– Copy and paste SQL query directly from Microsoft SQL Management Studio application into a PLC string tag(s)

– All SQL queries triggered by the PLC, therefore no unnecessary data polling

– Add new PLCs, remove PLCs, add new queries, change existing queries and more, without interfering with other running queries or restarting Windows DBGW service

– Local HMI panels has easy access to database data, for selecting of orders or recipes by using standard tags in the PLC

– Avoiding scripting in SCADA applications for handling SQL transactions

No need for purchasing datalogging software

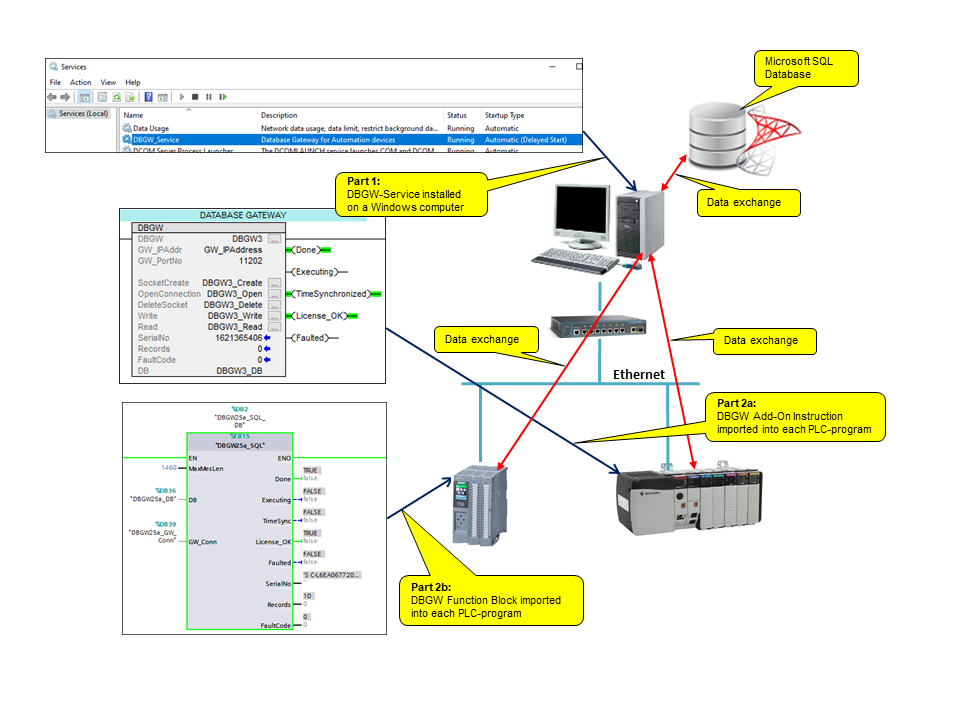

Software consist of 2 parts:

Part 1: Windows Service program (called DBGW-Service) installed on a Windows computer or on a Virtual Machine (Windows OS) in Microsoft Azure Cloud, Amazon Web Services or Google Cloud Platform

Part 2a: Rockwell PLC’s: DBGW Add-On Instruction imported into each of your Compact- or ControlLogix PLC-program

Part 2b: Siemens PLC’s: Drag and drop DBGW Function Block from DBGW library into each of your S7-1200 & S7-1500 PLC-program

License:

The PLC Add-On instruction/Function block DBGW is licensed to the PLC’s unique serial number.

No license on Windows DBGW-Service program, therefore no additional cost for implementing redundant database access or accessing both local and Cloud databases.

Please register for free software download with full functionality for testing and validation!
